HD132x Series

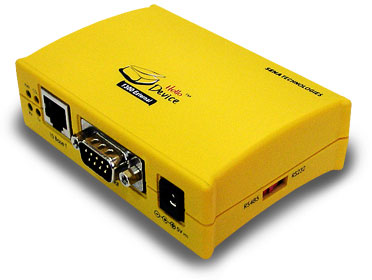

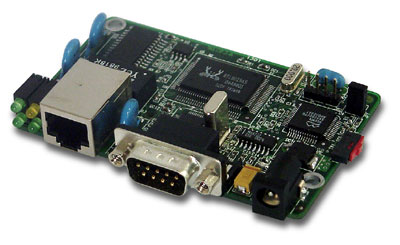

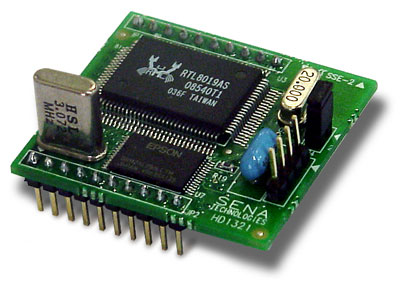

HD1320E Single-port serial-Ethernet communication device (Click to enlarge)	HD1320 Single-port serial-Ethernet communication baord (Click to enlarge)	HD1321Serial-Ethernet communication module (Click to enlarge)

HD132x Series is an RS232 to TCP/IP protocol converter, which enables data communication between the device and the user over the Internet as client and/or server. With HD132x Series, users can easily send data to the device and/or receive data from the device over the Internet.

An existing device with the serial port (RS232) can be connected to the Internet simply with an external type HD1320E without the need for the expensive dedicated PC and lengthy serial cables.

Manufacturers can easily network-enable their own product with a board type HD1320 or module-type HD1321 integrated onto the circuit board of the product without major design changes.

Quick Links

HD132x Series

Data Sheet, 62k, PDF

User Manual, 2.4M, PDF

Management Software, (3.8M)

Specifications

	HD1320E	HD1320	HD1321
Processor & Memory	Processor: Ubicom SX52BD, 50 MIPS
Processor & Memory	Memory: 32KB SRAM, Buffering space for incoming data from the serial port
Serial Interface	Male DB9 RS-232 Serial Port	Male DB9 RS-232 Serial Port	UART
	Serial Speeds 150bps ~ 115Kbps
	Signasl: Rx, Tx, RTS, CTS, GND
	Flow Control: Software XON/XOFF Hardware RTS/CTS
Network Interface	RJ45 Ethernet Connector	RJ45 Ethernet Connector	10BaseT Ethernet MAC & PHY Interface
Network Interface	Supports Static & Dynamic IP Address
Supported Protocols	ARP, IP/ICMP TCP/IP Server & Client DHCP Client
Management	HelloDevice Utility Software Security Level: User ID/Password
Power Requirement	Voltage: 7.5 - 9V DC	Voltage: 7.5 - 9V DC	Voltage: 5V DC
Power Requirement	Current: 150 mA min.
Environmental	Operating Temperature: 5° to 50°C Storage Temperature: -40° to 66°C
Agency Approvals	CE FCC Class A MIC
Physical Properties	Dimensions: 98mm L x 66mm W x 30mm H	Dimensions: 86mm L x 53mm W x 16mm H	Dimensions: 41mm L x 38mm W x 16mm H
Physical Properties	Weight: 108g	Weight: 44g	Weight: 10g

Ordering Information

Model	Description
HD1320E	Ethernet-Serial Communication Box User Manual, Utility Software, serial cable, 110V or 230V external power supply, and mounting kit included
HD1320	Ethernet-Serial Communication Board Board Only
HD1321	Ethernet-Serial Communication Module Module Only
