Sena HD1x00 Series
|
|
|
|
|

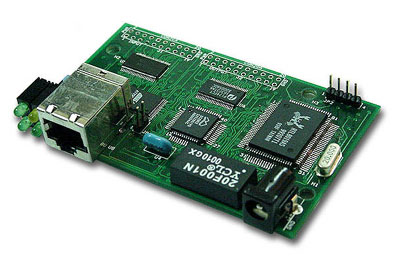

HD1100
Ethernet-Digital I/O
Communication Board
(Click to enlarge)
|

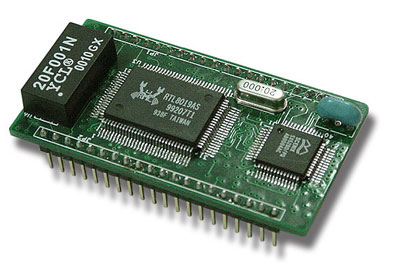

HD1200
Ethernet-Dual-port RAM
Communication Board
(Click to enlarge)
|

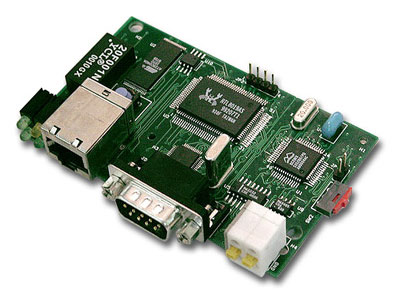

HD1300
Ethernet-Serial
Communication Board
(Click to enlarge)
|
|
 |
|
HD1x00 Series is a board-only web server that lets manufacturers and system integrators connect devices such as home appliances and industrial control systems directly to the
Internet via Ethernet, and remotely monitor and control them with standard web browsers such as Microsoft Explore and Netscape Navigator.
HD1x00 Series provides Ethernet-based TCP/IP communication with various device connectivities; HD1100 for Digital Input/Out, HD1200 for Dual-port RAM, and HD1300 for RS232/485
Serial Communication
With HD1x00 Series, manufacturers and system integrators can webify existing products and new design without substantial design change of the product. |
HD1100
Data Sheet (PDF 115k)
User-Manual (PDF 1.9M)
HD1200
Data Sheet (PDF 95k)
User-Manual (PDF 3M)
HD1300
Data Sheet (PDF 103k)
User-Manual (PDF 2M)
HD1x00
Management Software (PDF 3.7M) |
Specifications
|
|
HD1100
|
HD1200
|
HD1300
|
Device
Interface |
16 Digital Input / 16 Digital Output
|
2KB Dual-port RAM
|
1 Channel RS232/485
|
| Processor |
Ubicom SX52BD, 50 MIPS
|
| Memory |
512KB Flash Memory for user web files
|
Network
Interface |
RJ45 10BaseT Ethernet MAC/PHY Interface
|
Supported
Protocols |
HTTP / BOOTP
TCP / UDP
IP / ICMP / ARP
Ethernet (IEEE802.3)
|
| Management |
HelloDevice Utility Software
|
Power
Requirement |
- Voltage: 5VDC
- Current: 150 mA Nominal
|
Ordering Information
| Model |
Description |
| HD1100 |
- Ethernet-Digital I/O Communication Board
- Board only
|
| HD1100SK |
- Starter Kit for HD1100
- HD1100, 5V Switching Mode Power Supply or
Power Adaptor, Demo Board, CD-ROM for HelloDevice Utility
Software & Sample Programs, and User Manual included
|
| HD1200 |
- Ethernet-Dual-port RAM Communication Module
- Module only
|
| HD1200SK |
- Starter Kit for HD1200
- HD1200, 5V Switching Mode Power Supply or
Power Adaptor, Demo Board, Dual-port RAM Interface Cable (26
pin, 2.5mm pitch), Analog-Digital Converter & I/O
Interface Cable (20 pin, 2.5mm pitch), CD-ROM for HelloDevice
Utility Software & Sample Programs, and User Manual
included
|
| HD1300 |
- Ethernet-Serial Communication Board
- Board only
|
| HD1300SK |
- Starter Kit for HD1300
- HD1300, 5V Switching Mode Power Supply or
Power Adaptor, Serial Cable, CD-ROM for HelloDevice Utility
Software & Sample Programs, and User Manual included
|
|
