| Serial Interface |
1-port RS232 Male DB9 |
|
Serial speeds: 1200bps to 115Kbps |
|
Flow Control: Hardware RTS/CTS, XON/XOFF |
Signals:
- RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND
|
| Network Interface |
10 Base-T Ethernet with RJ45 Ethernet connector |
|
Supports static and dynamic IP address |
| Protocols |
ARP, IP/ICMP
TCP/IP, UDP
Telnet
DHCP client
PPPoE
|
| Security |
User ID & Password |
|
IP address filtering |
| Management |
- Telnet
- Serial console port
- HelloDevice Manager
|
| Indicator |
- Power
- Ready
- 10 Base-T: Link, Act
- Serial: Rx, Tx
|
| Power |
Supply voltage = 7.5V ~ 20V DC |
|
Supply current = 100mA (nominal) |
| Environmental |
Operating temperature: 5° to 50°C |
|
Storage temperature: -40° to 66°C |
Physical Properties
|
Size:
91 mm L x 66 mm W x 25 mm H |
|
Weight: 200g |
| Approvals |
FCC(A), CE(A), MIC |
| Warranty |
5-year Limited Warranty |
Data Sheet-pdf/ 795k

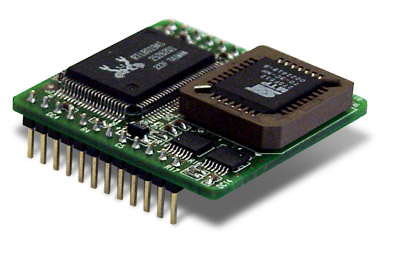

LS100M
