HelloDevice Master Series

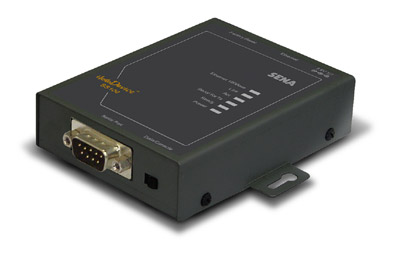

SS100 Universal Single-port serial-Ethernet communication device
(Click to enlarge)

SS400/800 Universal 4/8- port serial-Ethernet
communication device
 Previous page

Features

  • Connects legacy serial devices to 10/100Base Ethernet network
  • Supports RS232/422/485 based serial devices via its DB9 serial port
  • Serial data transfer rate up to 230Kbps
  • Supports Dynamic DNS and PPPoE protocols for broadband network access
  • Supports standard encryption method, SSL(Secure Socket Layer) protocol
  • Configuration via web, telnet or serial port

  • Management software for configuration and administration

Quick Links

Data Sheet (369k, PDF)

Quick Start (196k, PDF)

User Manual (1.3M, PDF)

Firmware (3.5M)

Management Software (3.8M)

Specifications

  SS100
Serial Interface

1-port Male DB9

Serial speeds: 1200bps to 230Kbps
Flow Control: Hardware RTS/CTS
Signals:
  • RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND
  • RS422: Rx+, Rx-, Tx+, Tx-
  • RS485: Data+, Data-
Network Interface 10Base-T/100Base Ethernet with RJ45 Ethernet connector
Supports static and dynamic IP address

Protocols

ARP, IP/ICMP
TCP, UDP
Telnet
DNS, Dynamic DNS
HTTP/HTTPS, SMTP
DHCP client
PPPoE
SNMP v1&v2
PCMCIA None
Security User ID & Password
IP address Filtering
Data Encryption: SSL
Management Management Tools:
  • Web
  • Telnet
  • Serial console port
  • HelloDevice Manager

System log and statistics:

  • Error log storage up to 100 messages
  • Automatic email delivery of error log
  • Full-featured system status display support
Firmware:
  • Stored in Flash memory
  • Downloadable from serial console or telnet
Indicator
  • Power
  • Ready
  • 10/100 Base: Link, Act
  • Serial: Rx, Tx for each port
Power Supply voltage = 5VDC 5% / 1A
Environmental Operating temperature: 5° to 50°C
Storage temperature: -40° to 66°C
Physical Properties (LxWxH mm) 100x72x25
240gr
Approvals FCC(A), CE(A), MIC
Warranty 5-year Limited Warranty

Ordering Information

Model Description
SS100 Universal Single-port Serial-Ethernet Communication Device
  includes:
  • Quick installation guide
  • CD-ROM
  • Serial data cable
  • External 110V or 230V power supply
  • Mounting kit
