HelloDevice Pro Series
|
|
|
|
|

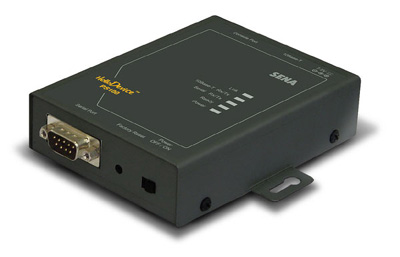

PS100 Versatile Single-port serial to Ethernet
communication device
(Click to enlarge)
|

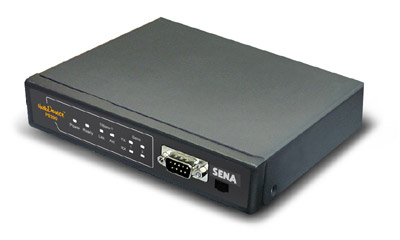

PS200 Versatile 2- port serial to Ethernet
communication device
(Click to enlarge)
|

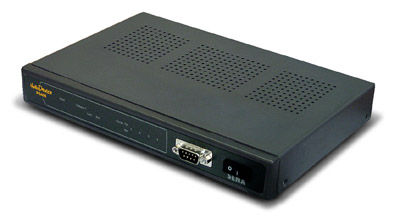

PS400 Versatile 4- port serial to Ethernet
communication device
(Click to enlarge)
|
|
|
|
Features
-
Connects legacy serial devices to 10Base-T Ethernet network
-
Supports RS232/422/485 based serial devices via its DB9 serial port
-
Serial data transfer rate up to 115Kbps
-
Reliable TCP/IP protocol stack
-
PPPoE protocol for DSL connection to broadband network
-
Supports powerful Ethernet modem function
-
Static key based 3DES data encryption
-
Configuration via telnet or serial port
-
Management software for configuration and administration included
|
|
|
Quick Links
|
|
|
 PS100 |
PS400 |
|
 Data Sheet,
124k, PDF
Quick Start, 211k, PDF
User Manual. 479k, PDF
Firmware, 224k
|
Data Sheet, 409k, PDF
Quick Start, 309k, PDF
User Manual, 479k, PDF
Firmware, 228k
|
|
|
| PS200 |
PS100,PS200,PS400 |
|
Data Sheet,529k, PDF
Quick Start, 224k, PDF
User Manual, 479k, PDF
Firmware, 228k
|
Management Software, 3.8M
Product Qverview, 1.4M, PPS
|
|
|
|
|
Specifications
| |
PS100 |
PS200 |
PS400 |
| Serial Interface |
1-port RS232/422/485 Male DB9 |
2-port RS232/422/485 Male DB9 |
4-port RS232/422/485 Male DB9 |
| Serial speeds: 1200bps to 115Kbps |
| Flow Control: Hardware RTS/CTS |
Signals:
- RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND
- RS422: Rx+, Rx-, Tx+, Tx-
- RS485: Data+, Data-
|
| Network Interface |
10 Base-T Ethernet with RJ45 Ethernet
connector |
| Supports static and dynamic IP address |
| Protocols |
ARP, IP/ICMP
TCP/IP, UDP
Telnet
DNS, SMTP
DHCP client
PPPoE
|
| Security |
User ID & Password |
| IP address filtering |
| Data Encryption: Static key based 3DES |
| Management |
Management Tools:
- Telnet
- Serial console port
- HelloDevice Manager
|
|
System log and statistics:
- Error log storage up to 100 messages
- Automatic email delivery of error log
- Full-featured system status display support
|
Firmware:
- Stored in Flash memory
- Downloadable from serial console or telnet
|
| Indicator |
- Power
- Ready
- 10 Base-T: Link, Act
- Serial: Rx, Tx for each port
|
| Power |
| Supply voltage = 7.5V ~ 30V DC |
| Supply current = 140mA (nominal) |
Supply current = 140mA (nominal) |
Supply current = 190mA (nominal) |
| Environmental |
Operating temperature: 5° to 50°C |
| Storage temperature: -40° to 66°C |
| Physical Properties |
Size:
112 mm L x 82 mm W x 25 mm H
(4.4 in x 3.2 in x 1.0 in) |
Size:
135 mm L x 80 mm W x 25 mm H
(5.3 in x 3.1 in x 1.0 in) |
Size:
230 mm L x 153 mm W x 30 mm H
(9 in x 6 in x 1.2 in) |
| Weight: 290g |
Weight: 300g |
Weight: 920g |
| Approvals |
FCC(A), CE(A), MIC |
| Warranty |
5-year Limited Warranty |
Ordering Information
| Model |
Description |
| PS100 |
Versatile Single-port Serial-Ethernet Communication
Device |
| PS200 |
Versatile 2-port Serial-Ethernet Communication
Device |
| PS400 |
Versatile 4-port Serial-Ethernet Communication
Device |
| |
PS100/200/400 includes:
- Quick Start guide
- CD-ROM
- Serial data/console cable
- External 110V or 230V power supply
|
| PS100B |
Versatile Serial-Ethernet Communication Board
|
|
|
|
