IALink Series

IALink100-Modbus Single-port
Serial-Modbus/TCP communication gateway
(Click to enlarge)

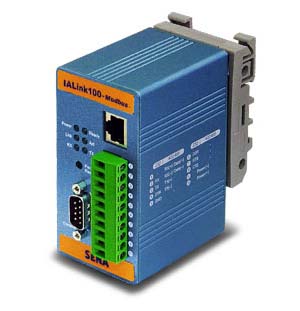

 IALink100
Single-port Serial-Ethernet
Device Server
(Click to enlarge)

 Previous page

IALink100 Features

  • Connects legacy serial devices to 10Base-T Ethernet networks

  • Supports RS232/422/485 based serial devices via screw terminal block

  • Transfers serial data at a rate up to 115 Kbps Supports multiple serial devices through RS422/485

  • Can be mounted on DIN-rail mounting rack

  • PPPoE protocol for ADSL connection to broadband Internet

  • Supports powerful Ethernet modem function

  • Static key based 3DES data encryption

  • Configuration via telnet or serial console port

  • Management software for configuration and administration



Quick Links

IALink100

Data Sheet-pdf/ 423k

UserManual-pdf/ 362k

Firmware 1.2.20- 224k

IALink100-Modbus

Data Sheet-pdf/ 514k

User Manual-pdf/ 704k

Firmware 1.0.13- 136k

IALink100
IALink100-Modbus
Management Software ( 3.8M)



IALink100-Modbus Features

  • Connects Modbus serial devices to 10Base-T Ethernet network

  • Supports serial protocol for Modbus RTU/ASCII

  • Supports Modbus Master/Slave mode

  • Supports RS232/422/485 based serial devices via screw terminal block

  • Transfers serial data at a rate up to 115 Kbps

  • Can be mounted on DIN rail mounting rack

  • Configuration via telnet or serial console port

  • Windows-based management software for configuration and administration

Top of Page

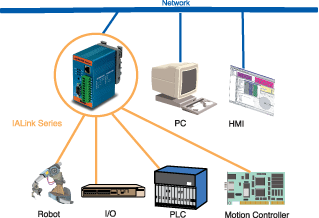

Application


Top of Page
Specification

  IALink100
IALink100-Modbus
Serial Interface Screw terminal block connector
Serial speeds 1200bps to 115Kbps
Flow control:
Hardware RTS.CTS		 Flow control:
None
Signals:
RS232: Rx, Tx, RTS, CTS,
DTR, DSR, GND
RS422: Rx+, Rx-, Tx+, Tx-
RS485: Data+, Data-
Signals:
RS232: Rx, Tx, GND
RS422: Rx+, Rx-, Tx+, Tx-
RS485: Data+, Data-
Network Interface 10 Base-T with RJ45 Ethernet connector
Supports static and dynamic IP address
Protocols ARP, IP/ICMP
TCP, UDP
Telnet
DNS, SMTP
DHCP client
PPPoE		 ARP, IP/ICMP
TCP
Telnet
DHCP client
Security   User ID & Password
User ID & Password
Data Encryption: Static key based 3DES
Management Telnet
Serial console port
HelloDevice Manager
Firmware: Stored in Flash memory and downloadable via serial console port or Telnet
IDiagnostic LED 2 for Power, Ready
2 for 10Base-T Link, Act
2 for Serial Rx, Tx
Power DC power supply via Screw terminal block
Supply voltage = 7.5 ~ 30 VDC
Supply current = 300mA / 7.5V DC
Environmental Operating temperature: 5°C to 50°C
Storage temperature: -40°C to 66°C
Physical Properties Dimension (LxWxH)
100x 50 x 68(mm) 3.9x 2.0x2.7 (in.)
Weight: 290g
Approvals FCC(A), CE(A), MIC
Warranty 5-year Limited Warranty
Ordering Information
Model Description
IALink100 Single port Application-specific Device Server for Industrial automation
IALink100-Modbus Single port Modbus/TCP Gateway for Industrial automation


IALink100, IALink100-Modbus includes:
Quick Start Guide
CD-ROM

Previous pageTop of Page
