UPSLink Series

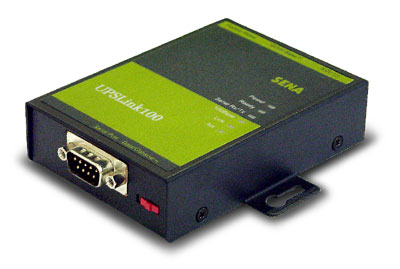

	UPSLink100 SNMP device for UPS management (Click to enlarge)

Features

Control and manage serial data UPS over network via SNMP
Supports 10 Base-T/100 Base Fast Ethernet network
Supports industry standard SNMP MIB II and UPS MIB
Supports various commercial NMS including Novell, HP OpenView, Sun NetManager, and IBM NetView
Configuration via web, telnet or NMS
Automatic email delivery of system log and statistics
Management software for configuration and administration

Quick Links

Data Sheet-pdf/ 87k

Management Software

( 3.8M )

User Manual-pdf/

664k

UPS serial programming

guide/ 399k

UPS serial program/ 92k

UPS serial protocol/ 60k

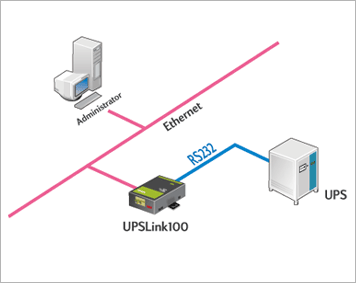

Application

Specifications

UPS	UPS with serial data port
UPS	UPS Interface: Male DB9 serial port connector
MIB	MIB II (RFC1213) UPS MIB (RFC1628)
Network Interface	10 Base-T/100 Base Fast Ethernet with RJ45 Ethernet connector Automatic detection
Network Interface	Supports static and dynamic IP address
Protocols	ARP, RARP, IP/ICMP TCP, UDP Telnet, HTTP, SMTP DNS, Dynamic DNS FTP, TFTP BOOTP/DHCP client SNMP, SNTP PPPoE
Security	User ID & Password
Security	IP address filtering
Management	Management Tools: NMS Web Telnet Serial console port HelloDevice Manager
Indicator	Power Ready Ethernet Link, Act Serial Rx, Tx
Power	Supply voltage =7.5 ~ 30 V DC
Power	Supply current = 660mA (nominal)
Environmental	Operating temperature: 5° to 50°C
Environmental	Storage temperature: -40° to 66°C
Physical Properties	Size: 95 mm L x 65 mm W x 25 mm H (3.7 in x 2.5 in x 1.0 in)
Physical Properties	Weight: 300g
Approvals	FCC(A), CE(A), MIC
Warranty	5-year Limited Warranty

Ordering Information

Model	Description
UPSLink100	UPSLink100 SNMP device for UPS management including: Quick Start Guide CD-ROM External 110V or 230V power supply Availability: 2002 Q2
