VTS Series

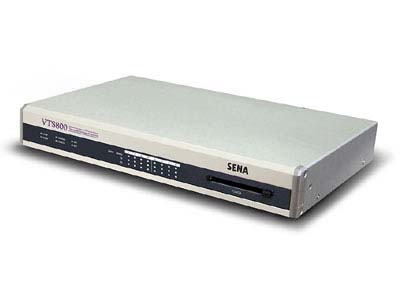

VTS400/800 4/8-port Versatile Terminal Server
(Click to enlarge)

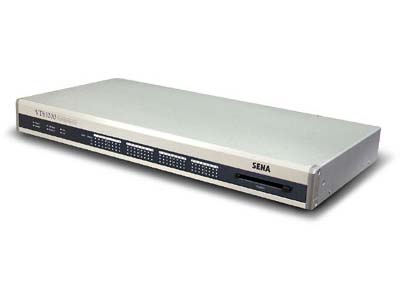

VTS1600/3200 16/32-port Versatile Terminal Server
(Click to enlarge)

Previous page

Features

  • Windows 2003 Server Emergency Management Services support

  • In-band management of devices over wired/wireless LAN

  • Out-of-band management through dial-in access or broadband network such as ADSL and CATV connection using PPPoE and Dynamic DNS features

  • Supports 4/8/16/32 console port interface with data transfer rate up to 230Kbps

  • Supports PC cards such as ATA memory, modem and wired/wireless LAN card

  • Supports strong security protocols such as SSH, RADIUS, LDAP, and TACACS+

  • System logging and Port buffering to the syslog server, NFS and ATA memory card

  • Alarm notification thru email

  • Supports Secure Clustering up to 16 slave units

  • Sun Solaris break safe

  • User-friendly configuration interface thru Web or telnet or SSH

Quick Link

- Leaflet (1.1m, PDF)

- Data Sheet (1.1M, PDF)

- User Manual (4.2M, PDF)

- Quick Start (545k, PDF)

- Product Presentation
   (1.5M)

- PC.Card Suport List

- VTS How to




Top of Page

Specifications

  VTS400 VTS800
VTS1600
VTS3200
Serial Interface 4-port 8-port
16-port 32-port
RJ45
Use Ethernet cable for console access over Sun Netra/Cisco equipments
Flow Control:Hardware RTS/CTS, Software XON/XOFF
Signals: RS232 Rx, Tx, RTS, CTS, DTR, DSR, GND
Modem controls:DTR/DSR and RTS/CTS
Network Interface 10/100 Base Ethernet with RJ45 Ethernet connector
Supports static and dynamic IP address
Protocols ARP, IP/ICMP
TCP, Telnet, SSH v1 & v2
DNS, Dynamic DNS
HTTP, HTTPS, SMTP, DHCP
PPPoE
SNMP v1 & v2 (MIB II)
RIP, Static routing
PC Card One slot interface
ATA flash memory card
802.11b Wireless LAN card
LAN card
Modem card
Security User access control to the system and the ports
User-level Management:
Root, Admin, Port Admin, User
SSH v1 & v2 with public key support
RADIUS, LDAP, TACACS+ authentication
IP filtering for the system and the ports
Logging & Buffering Deliver the system log messages to NFS, syslog server, ATA Flash memory
Store port buffer data to NFS, syslog server, ATA Flash memory
Supports the flexible buffer size management according to the media and the application
Alarm notification from the port alarm messages
Clustering Supports NAT-based efficient and secure clustering
Access up to 16 slave units
Management Web, Telnet/SSH, System console port, HelloDevice Manager
Supports Linux command line interface for the power users
Full-featured system status display
Firmware: Downloadable through Telnet or system console
LED Indicator Power
In-Use
PCMCIA
Link, Act, 100Base
Serial Ready/Rx/Tx for each console port
Power 5 VDC external power adapter
1.5A/5VDC
110~250 VAC, 50/60 Hz
43W
Environmental Operating temperature: 5°C to 50°C
Storage temperature: -4°C to 66°C
Physical Properties Dimension
245 mm L (9.6 in.)
153 mm W (6.0 in.)
30 mm H (1.2 in.)
Dimension
432 mm L (17 in.)
193 mm W (7.6 in.)
44.5 mm H (1.75 in.)
1U, 19 in. rack mountable
Weight 1.5kg Weight 2.8kg
Approvals CE(A), FCC Class A, MIC
Warranty 5-year limited warranty

Ordering Information

Model Description
VTS400 4 serial port Versatile Terminal Server
VTS800 8 serial port Versatile Terminal Server
VTS1600 16 serial port Versatile Terminal Server
VTS3200 32 serial port Versatile Terminal Server
  All items include:
  • Quick Start Guide
  • CD-ROM
  • Cable kit
  • Power cord

Options:

#0401078....RJ45 to DB9F Cable Adapter,  Crossover, Bundle of four

#0401079....RJ45 to DB25F Cable Adapter,  Crossover, Bundle of four

#0401080....RJ45 to DB25M Cable Adapter,  Crossover, Bundle of four

#0401081....RJ45 to DB25M Cable Adapter, Straight, Bundle of four
