STS Series Secure Terminal Servers
![Previous page](../images/back.gif) |
![](images/rinux_penguin.gif) |
|
Features
![](images/blank00.GIF) Connects legacy serial devices to 10/100Base-T Ethernet
network
![](images/blank00.GIF) Supports RS232 based serial devices, up to 230Kbps
speed
![](images/blank00.GIF) Powerful security support, SSL(Secure Socket Layer), RC4
and 3DES
![](images/blank00.GIF) Supports powerful Ethernet modem function
![](images/blank00.GIF) Dynamic DNS and PPPoE protocol for DSL connection to
broadband Internet
![](images/blank00.GIF) Configuration via Web, Telnet or serial port
![](images/blank00.GIF) Management software for configuration and administration
included |
|
|
|
|
|
![Top of Page](../images/btop.gif) |
|
|
Specifications |
|
|
|
|

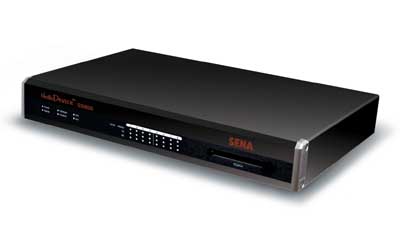

STS800
|

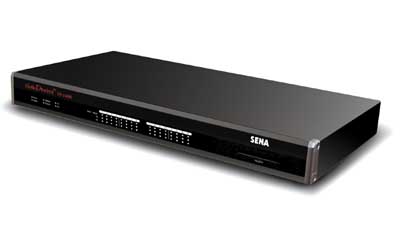

STS1600 |
Serial Interface |
8-port
RJ45
connector
|
16-port
RJ45
connector
|
Serial speeds 1200bps to 230Kbps |
Flow Control: Hardware RTS/CTS |
Signals:
RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND |
Network Interface |
10/100Base Ethernet with RJ45 Ethernet connector |
Supports static and dynamic IP address |
Protocols |
ARP, IP/ICMP
TCP, UDP
Telnet
DNS, Dynamic DNS
HTTP/HTTPS, SMTP
DHCP client
PPPoE
SNMP v1&v2 |
Security |
User ID & Password |
HTTPS |
Data Encryption: SSL |
IP address filtering |
Modem emulation |
Full support for AT commands |
Management |
Web
Telnet
Serial console port
HelloDevice Manager |
System log and statistics:
Error log storage up to 100 messages
Automatic email delivery of error log
Full-featured system status display support |
Firmware:
Stored in Flash memory and Downloadable via serial console or
telnet or web |
Diagnostic LED |
Power
Ready
10/100 Base Link, Act
Serial Rx, Tx for each port |
Power |
5VDC1.5A @ 5V |
110~250 VAC,
50/60Hz 43W |
Environmental |
Operating temperature: 5°C to 50°C |
Storage temperature: -40°C to 66°C |
Physical Properties
|
245x 153x 30 (mm)
9.6 x 6 x 1.2 (in.)
|
432 x 193 x 44.5 (mm)
17 x 7.6 x 1.75 ( in.)
|
Weight: 1.5kg |
Weight: 2.8kg |
Approvals |
FCC(A), CE(A), MIC |
Warranty |
5-year Limited Warranty |
|
|
Ordering Information |
|
|
|
Model |
Description |
STS800 |
8-port Smart Terminal Server
Available in 2003 Q2 |
STS1600 |
16-port Smart Terminal Server
Available in 2003 Q2 |
|
STS800/1600 includes
Quick start guide
CD-ROM
Cable kit
External 110V or 230V power supply or power cord
Mounting kit |
|
|
|
|
